SPECIFICATION | JZW3980PET | |
INJECTION UNIT | ||
Screw Diameter | mm | 80 |
Screw L/D Ratio | L/D | 25 |
Shot Size(Theoretical) | cm3 | 1689 |
Injection Weight(PS) | g | 1788 |
Injection Rate | g/s | 446 |
Plasticizing Capacity | g/d | 70 |
Injection Pressure | Mpa | 152 |
Screw Speed | rpm | 0~165 |
CLAMPING UNIT | ||
Clamp Tonnage | KN | 3980 |
Toggle Stroke | mm | 700 |
Space Between Tie Bars | mm | 720×720 |
Max. Mold Height | mm | 800 |
Min. Mold Height | mm | 280 |
Ejector Stroke | mm | 160 |
Ejector Tonnage | KN | 110 |
Ejector Number | Piece | 13 |
OTHERS | ||
Max. Pump Pressure | Mpa | 16 |
Pump Motor Power | KW | 37 |
Heater Power | KW | 24.8 |
Machine Dimensions(L×W×H) | m | 7.3×1.9×2.5 |
Machine Weight | t | 15.7 |
Hopper Capacity | L | 50 |
Oil Tank Capacity | L | 750 |

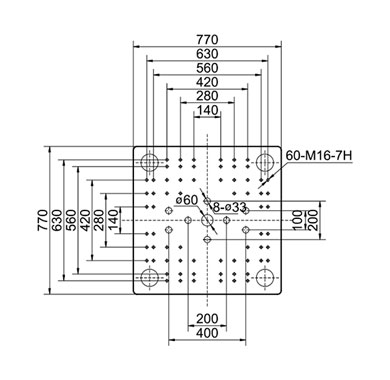

Platen Dimensions Face |
![]() |
|

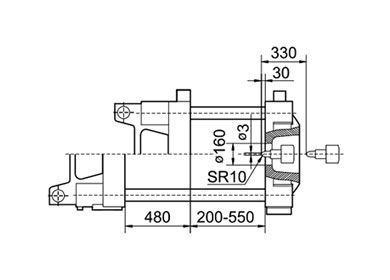

Platen Dimensions Side |
![]() |
|

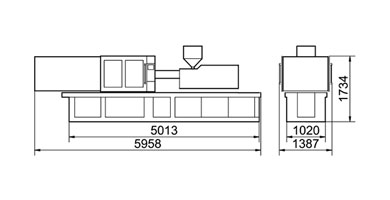

Machine Dimensions |
![]() |
