SPECIFICATION | JZW1680PET | |
INJECTION UNIT | ||
Screw Diameter | mm | 50 |
Screw L/D Ratio | L/D | 25 |
Shot Size(Theoretical) | cm3 | 491 |
Injection Weight(PS) | g | 520 |
Injection Rate | g/s | 175 |
Plasticizing Capacity | g/d | 30 |
Injection Pressure | Mpa | 128 |
Screw Speed | rpm | 0~150 |
CLAMPING UNIT | ||
Clamp Tonnage | KN | 1680 |
Toggle Stroke | mm | 430 |
Space Between Tie Bars | mm | 460×460 |
Max. Mold Height | mm | 480 |
Min. Mold Height | mm | 180 |
Ejector Stroke | mm | 120 |
Ejector Tonnage | KN | 40 |
Ejector Number | Piece | 5 |
OTHERS | ||
Max. Pump Pressure | Mpa | 16 |
Pump Motor Power | KW | 15 |
Heater Power | KW | 13 |
Machine Dimensions(L×W×H) | m | 5.3×1.4×2.1 |
Machine Weight | t | 5.2 |
Hopper Capacity | L | 25 |
Oil Tank Capacity | L | 250 |

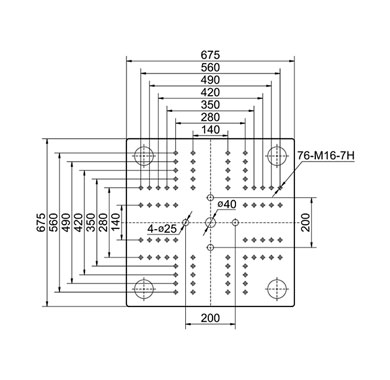

Platen Dimensions Face |
![]() |
|

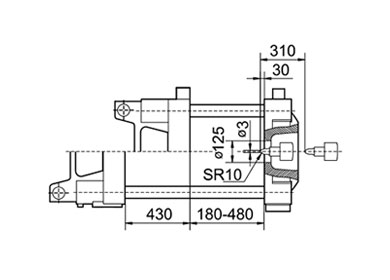

Platen Dimensions Side |
![]() |
|

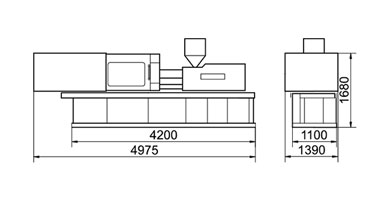

Machine Dimensions |
![]() |
